In Conjunction With (ICW)
In Conjunction With (ICW)
These plates are designed to be used with the appropriate Level II or Level IIIA soft armour.
| ICW Plates | Protection provided against | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| To be used In Conjunction With Soft Armour Vests. (Level II soft armour for Level III plates and Level IIIA soft armour for Level IV plates) |
R1 | AK-Ball | R4 | AK API | R1 AP | 30.06 AP | ||||
| No. | Plate Designation | Composition | Weight (kg) | 7,62 x 51mm Ball | 7,62 x 39mm (MSC) | 5,56 x 45mm (M193) | 5,56 x 45mm (SS109) | 7,62 x 39mm API | 7,62 x 51mm AP | 7,62 x 63mm AP |
| ICW1 | Level III ++ ULTRA-LIGHT | UHMWPE | 0,98 | ✓ | ✓ | ✓ | × | × | × | × |
| ICW2 | Level III +++ SUPA LIGHT | Ceramic/UHMWPE | 1,6 | ✓ | ✓ | ✓ | ✓ | × | × | × |
| ICW3 | Level III S A Mix | Ceramic/Aramid/GRP | 2,75 | ✓ | ✓ | ✓ | ✓ | ✓ | × | × |
| ICW4 | Level III S A Mix Ladies Front | Ceramic/Aramid | 1,7 | ✓ | ✓ | ✓ | ✓ | ✓ | × | × |
| ICW5 | Level IV | Ceramic/UHMWPE | 2,85 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ICW6 | Level IV | Ceramic/Aramid/GRP | 3,25 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Level III ++ ULTRA-LIGHT ICW
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet

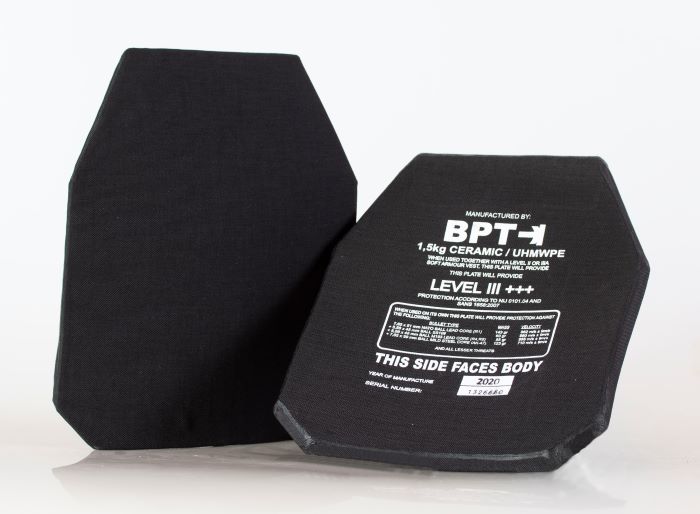

Level III +++ Supa Light
Designed to be light weight and give protection against the 5,56 x 45mm SS109 bullet. This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet

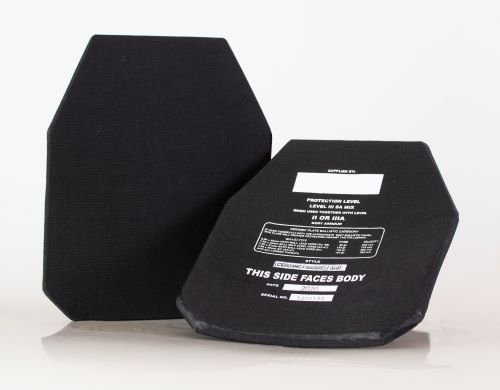

Level III SA Mix
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Designed specifically for the South African threat environment.
Spec Sheet

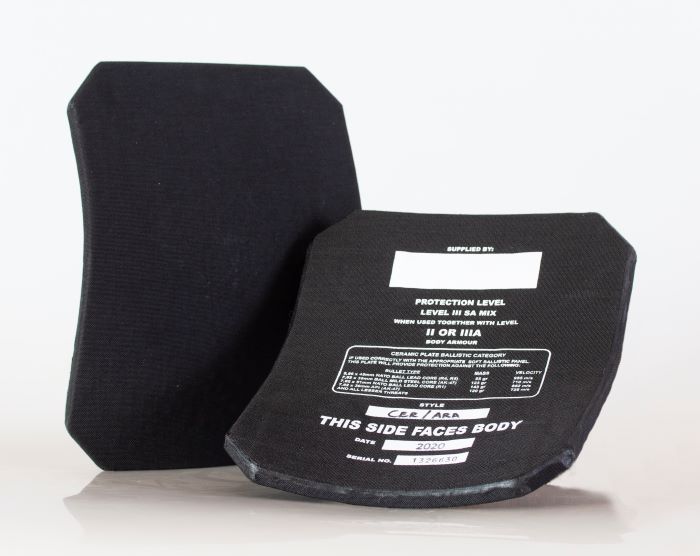

Level III SA Mix Ladies Front
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Designed for Female users.
Spec Sheet

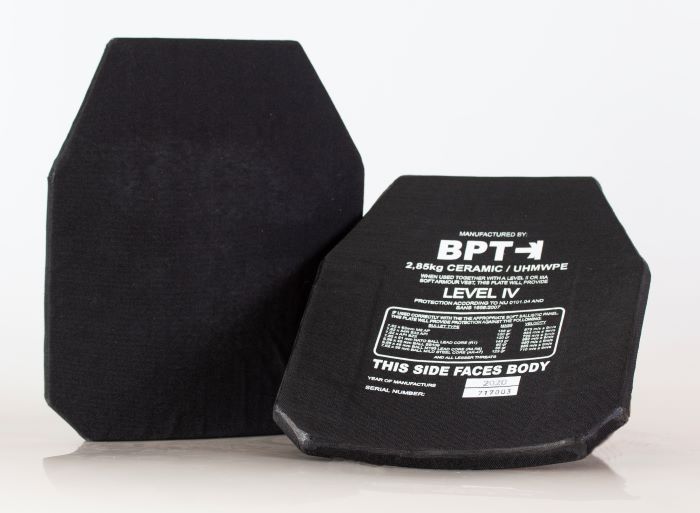

Level IV Ceramic/UHMWPE
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Lightweight level IV plate.
Spec Sheet

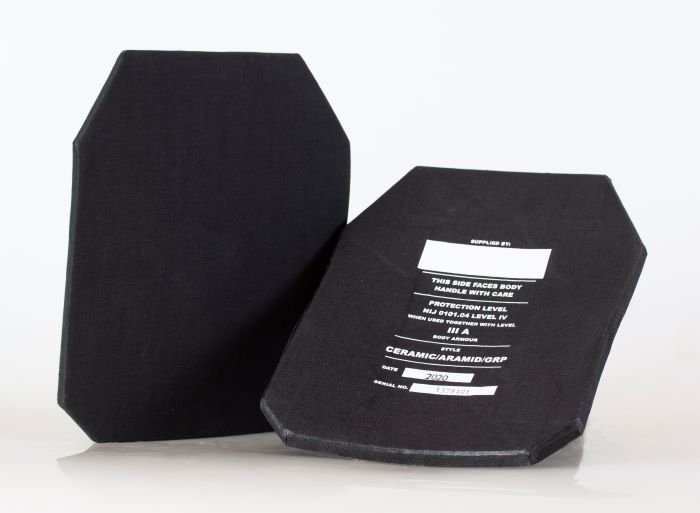

Level IV Ceramic/ARA/GRP
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet
